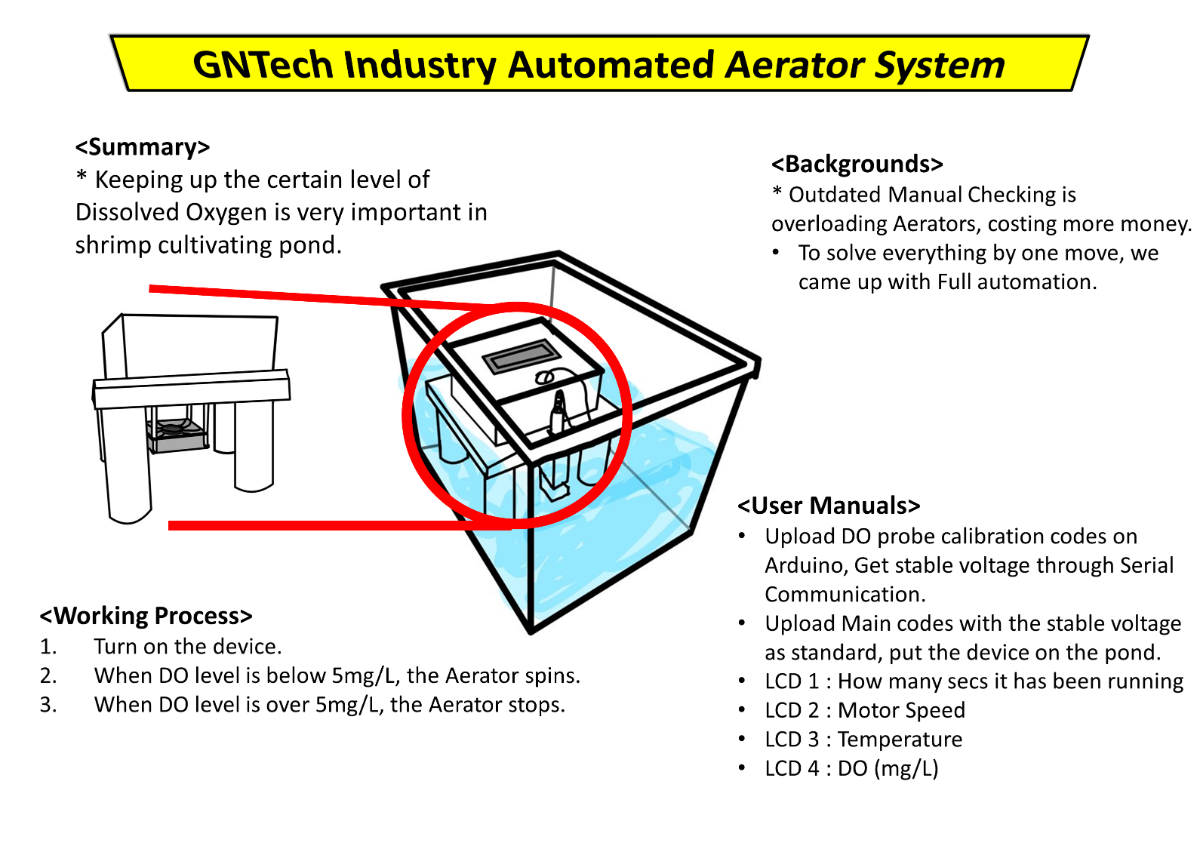

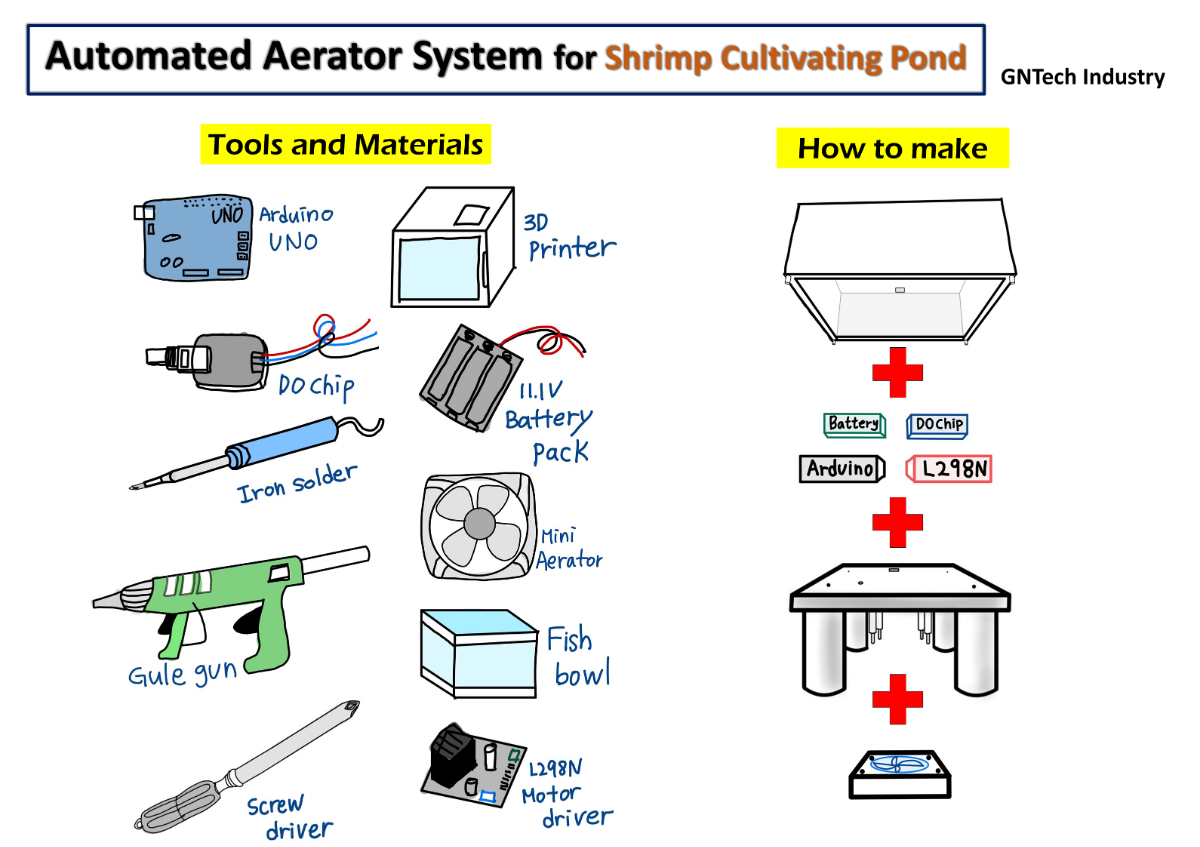

[GNTech Industry] Automated Aerator System for Shrimp Cultivating Pond
Solution
[GNTech Industry] Automated Aerator System for Shrimp Cultivating Pond
gntechindustry
Global Service Learning Idea & Design Competition
Issue2020-10-30
.png)
.
.png)
.
.
.png)
.
.
8-1, 8-2 (2020/11/18)
9-1 (2020/11/18)
9-2 (2020/11/21)
.

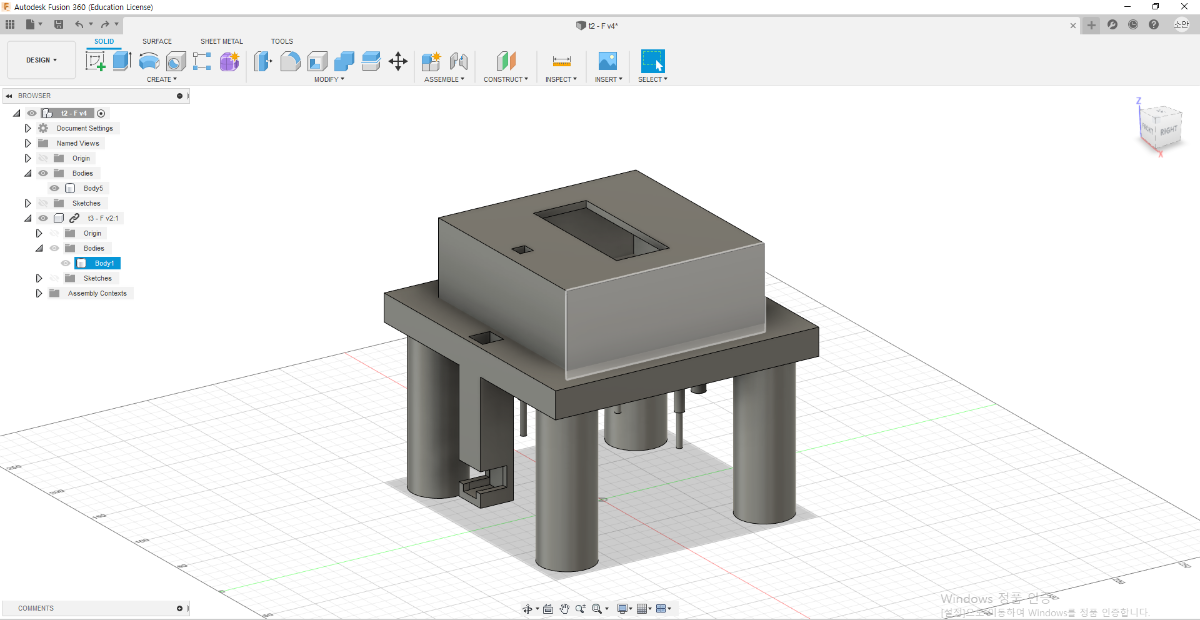

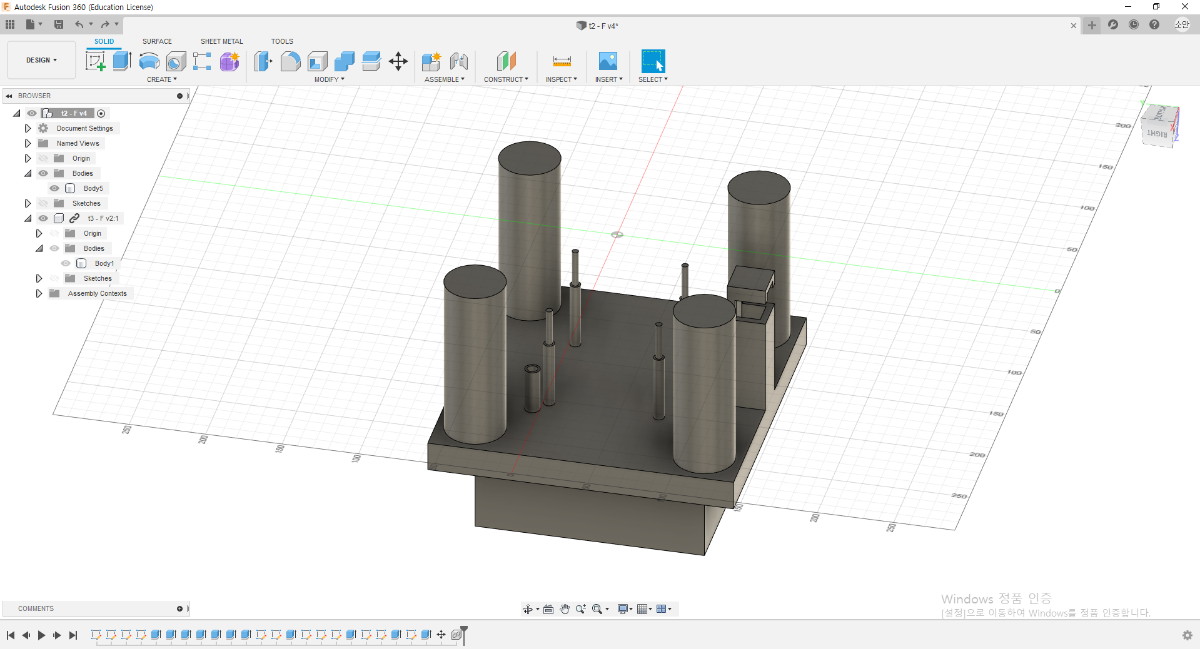

The Rig Lower Part
The Rig Top Part

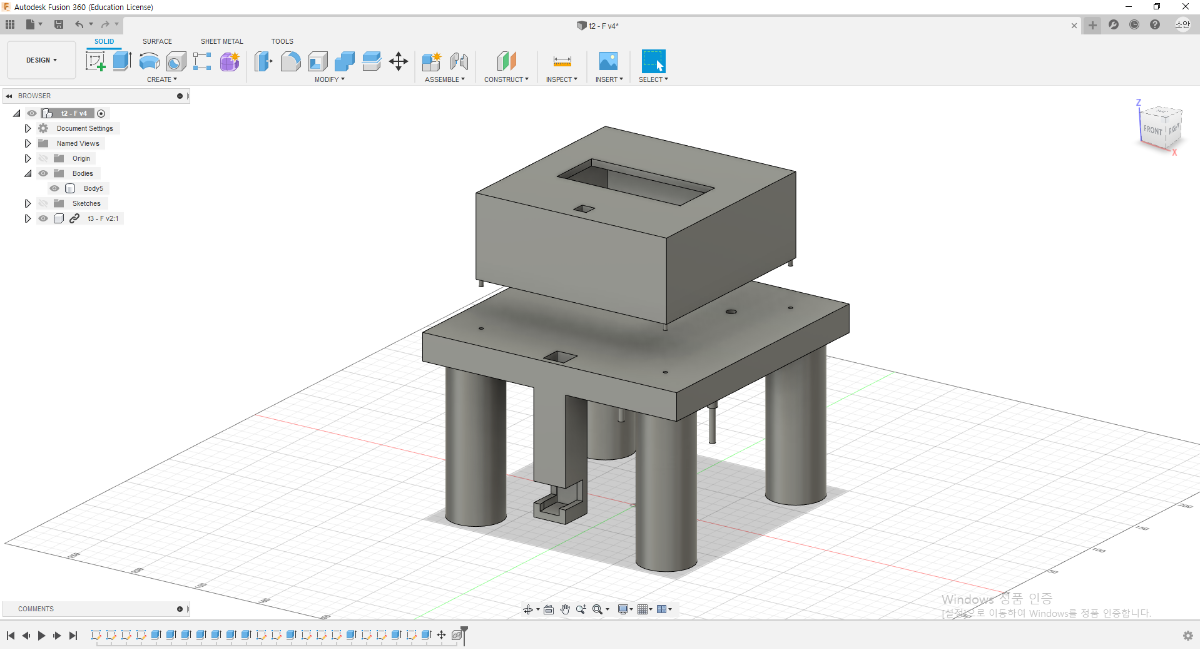

The Rig
.png)

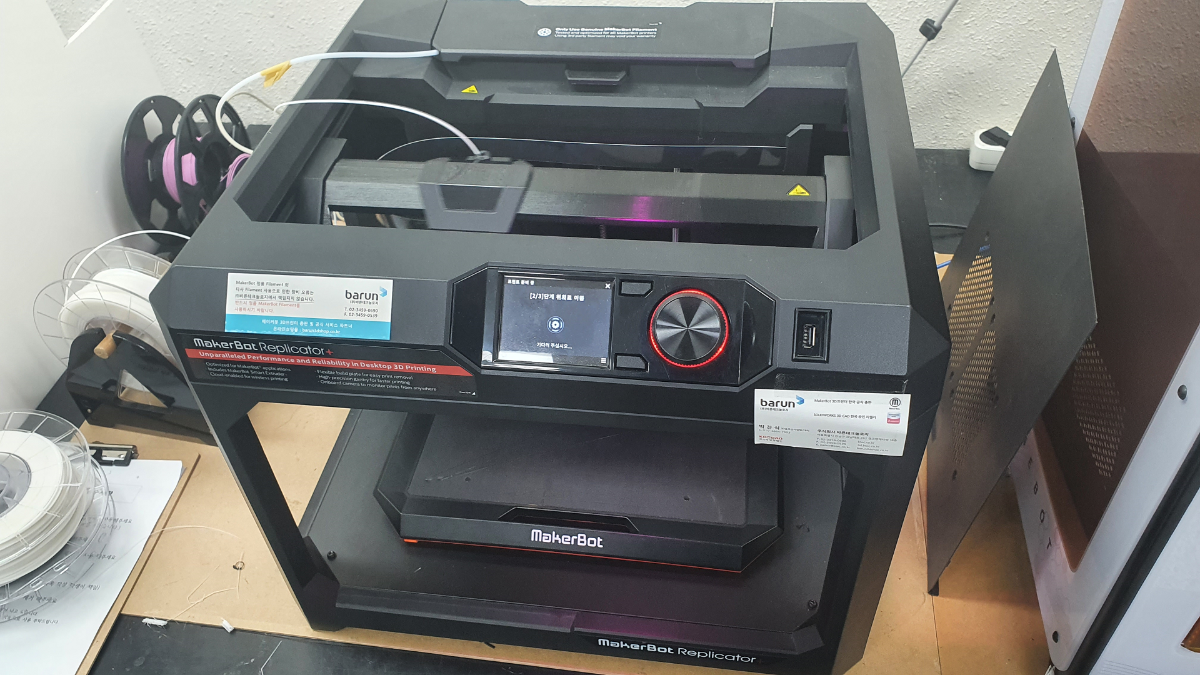

Printing the Rig
The Rig Came Out Perfectly
Doing each role
Calibrating [Dissolved Oxygen Sensor Probe] with [NaOH 0.5mol/L,100ml]
Running Seconds : How many seconds the device has been working
Motor Speed : Current Aerator's Speed Value (0~255)
Temperature : 25'C fixed for experimental circumstances
DO data : Dissolved Oxygen Value in the water [mg/L]
Motor Speed : Current Aerator's Speed Value (0~255)
Temperature : 25'C fixed for experimental circumstances
DO data : Dissolved Oxygen Value in the water [mg/L]
when the DO Probe reaches under 5mg/L, the Aerator automatically runs.
Dissolving the Oxygen into water, the device works on its own!
9-3 (2020/11/25)
.
,
.
.
