It is hard to monitoring the temperature because the sensor is analog and should be check by other everytime.
Solution
[Ojer](drying process for Green tea) issue 1
cnsgh1104
Creativity Station 2019
Issue2019-08-01
We visited Green tea factory in Gambung and heard about the problem that factory are facing with.
We discussed about the issues with the manager and based on the priority criteria, our team defined major issue as “monitoring temperature”. After that, we suggested many ideas through brain writing, and finally we decided the idea as ‘remote monitoring temperature system with arduino.’
We discussed about the issues with the manager and based on the priority criteria, our team defined major issue as “monitoring temperature”. After that, we suggested many ideas through brain writing, and finally we decided the idea as ‘remote monitoring temperature system with arduino.’
Pisplay the temperature through Lcd
Using arduino
Using arduino
Idea card
Detail Design
Manufacturing Design
Side view, front view, and bottom view
Tool

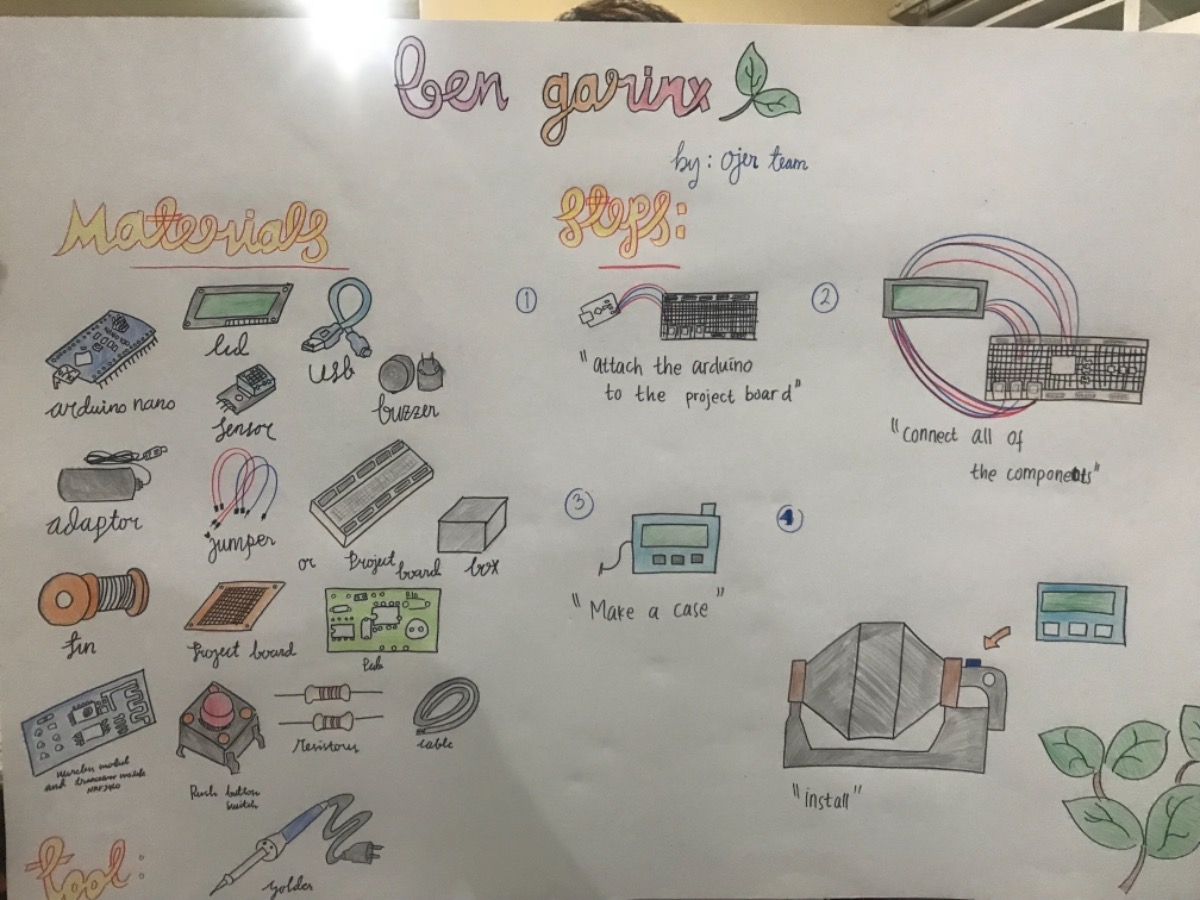

Purcasing Materials
Purchasing Materials
today, we started to make our product. The goal of first day is assembly and coding. we're in progress to that without any trouble.
today, the goal of my team was coding and assembly. About 70% for our progress has finished
One product is perfectly completed. But the other one has a problem on LCD, so we’re trying to solve it. (10 p.m)85% completed.

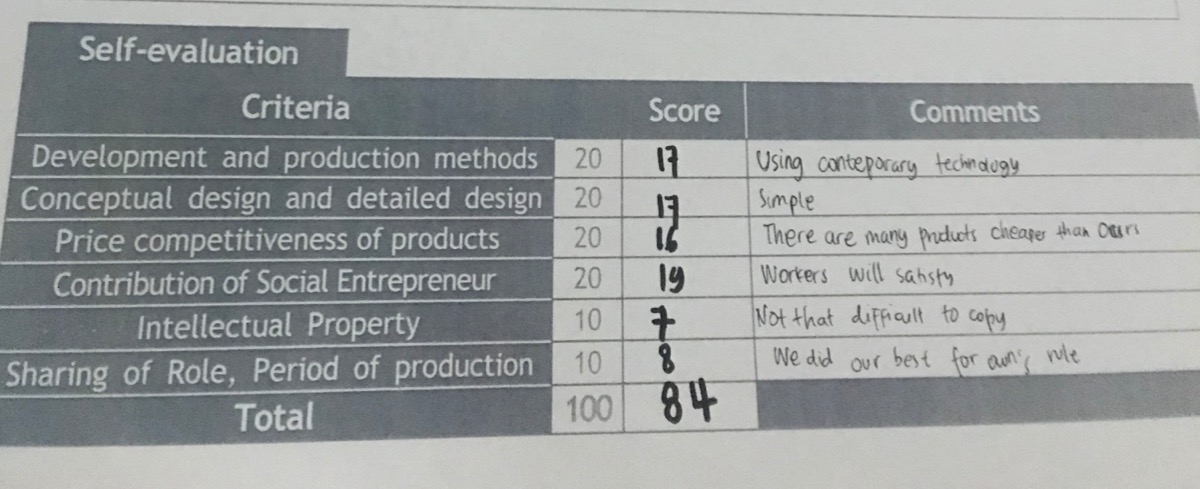

Writing product description and self reflection.
Installing Product
I attached the product to the factory and I could see that it worked.
