[Super Bee] White Tea Dryer Issue - 2

superbee

Creativity Station 2019

Issue

2019-08-01

Total Slide Show

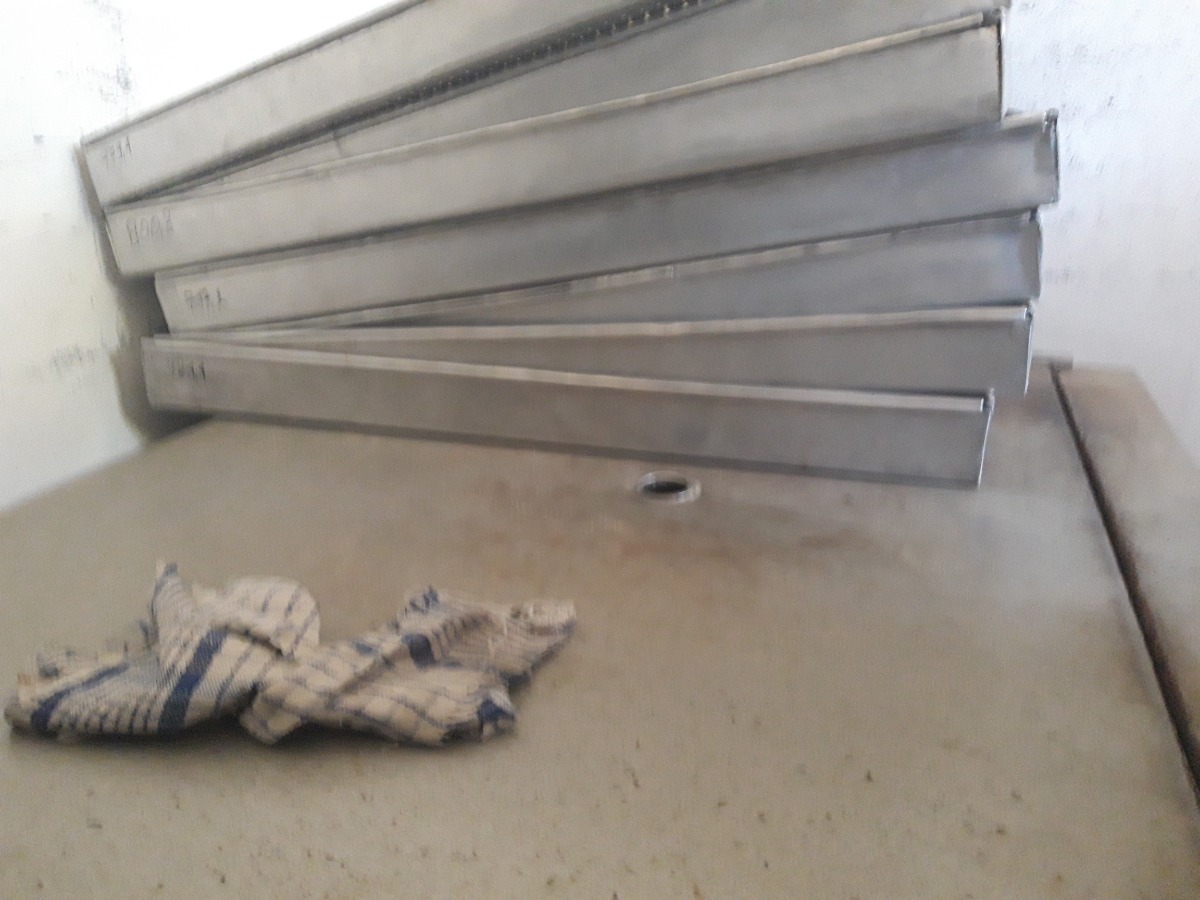

Tea leaves dryer is a little bit dangerous because the dryer transfers electricity and the worker has to touch the hole in the oven to detect whether theres still steam comes out from the oven or not. There is no any alarm or notification everything is do

#creativitystation #bandung #gamboeng

superbee

2019-08-01 22:39:36

Problem Definition

Slide Show

Interview with the worker

superbee

2019-08-02 09:54:26

Concept Design

Slide Show

The design of the solutions.
The chosen solution is to make humidity sensor that detect and send signal to identify the dryness

superbee

2019-08-02 22:30:03

Detail Design

Slide Show

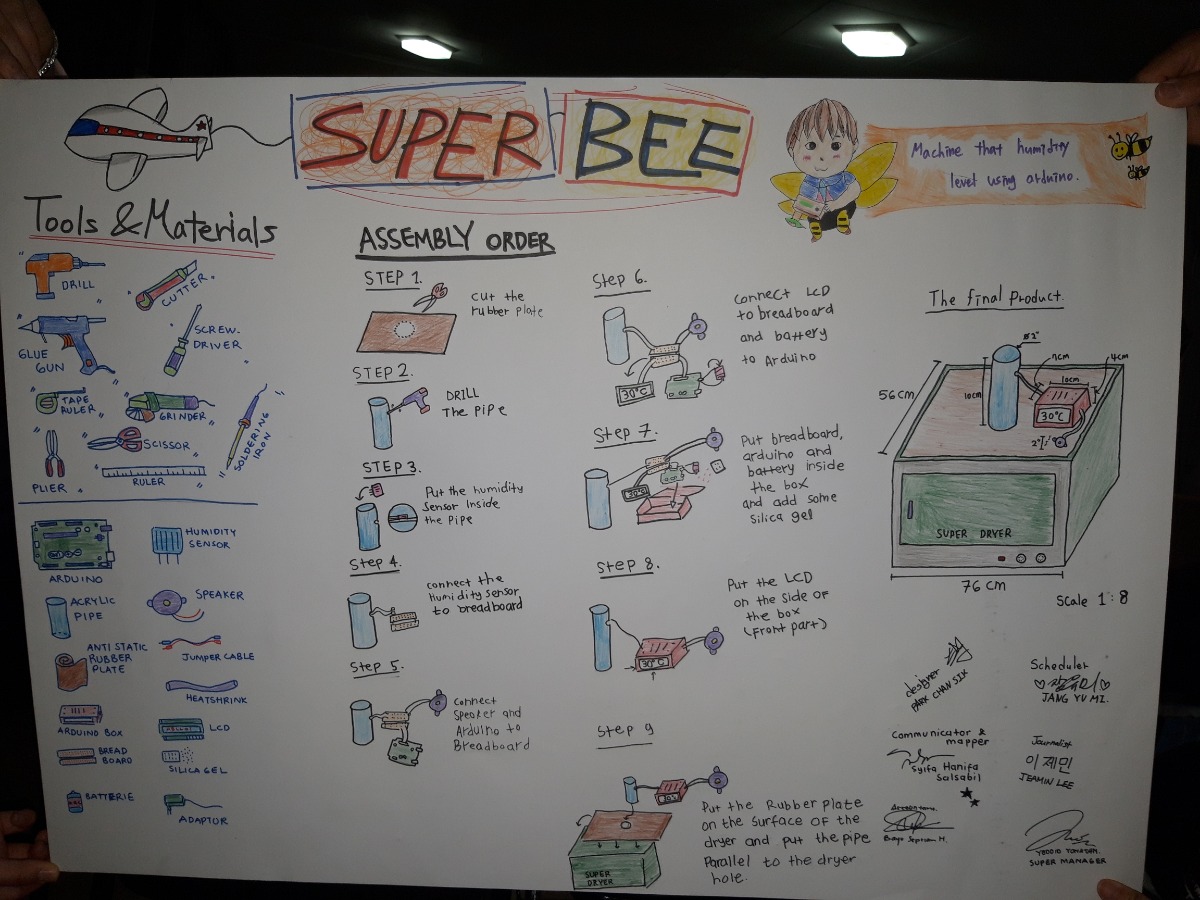

Assembly order and drawing of materials and tools needed for making the product. The size and finish product are also shown by drawing

superbee

2019-08-02 23:48:50

Manufacturing Design

Slide Show

3D design of the product and list of the materials that need to be bought. The total cost of the materials is around RP. 996.000

superbee

2019-08-03 23:05:25

Purchasing Materials

Slide Show

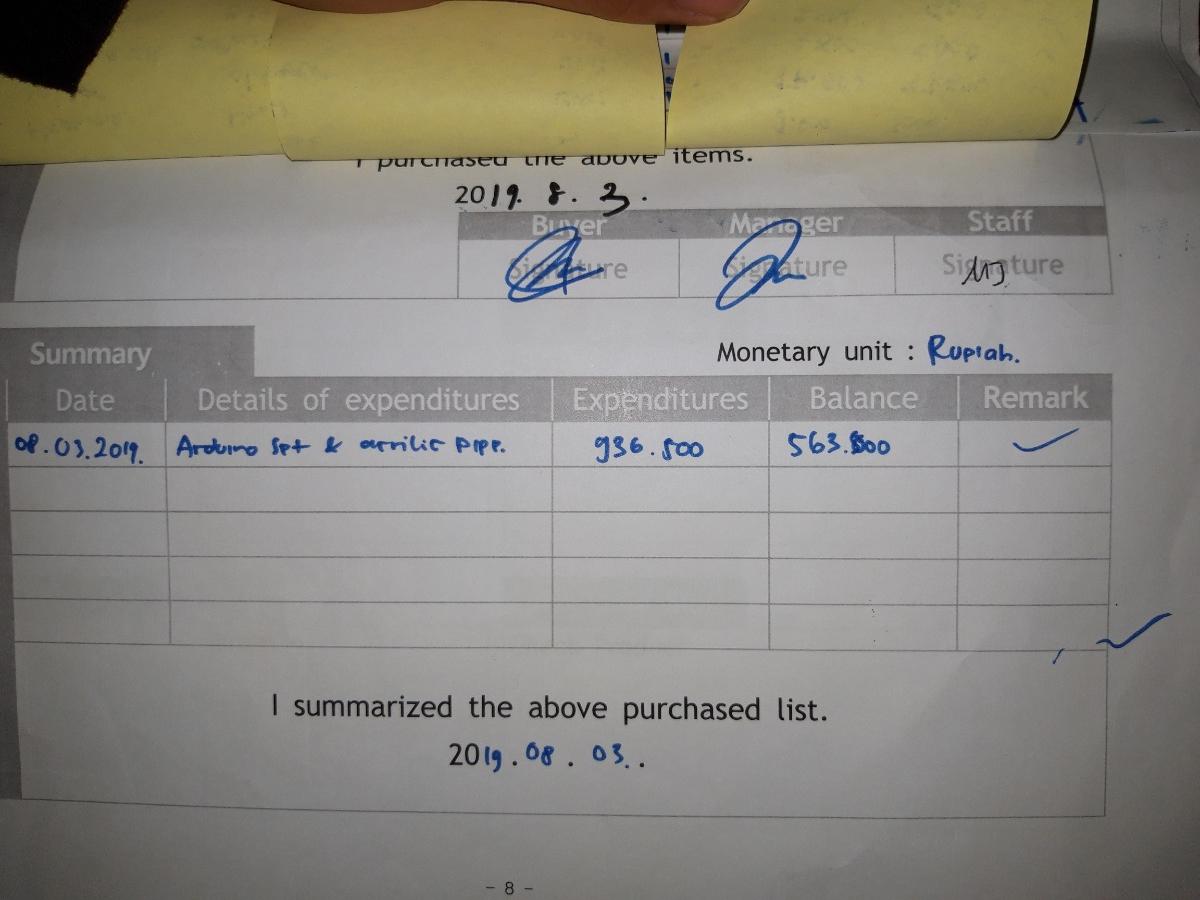

The total price of the purchased materials is lower than estimated total price.
Total price is including backup materials

superbee

2019-08-05 19:09:22

Making a Product

Slide Show

First day of making product.
We have done measuring, drilling, coding (need to be perfected) and trimming.
30% progress is made.

superbee

2019-08-06 20:37:38

Making a Product

Slide Show

Day #2
70% of progress made on 6/8.
Today we designed cover for cable and arduino and ready to be 3d printed tomorrow.

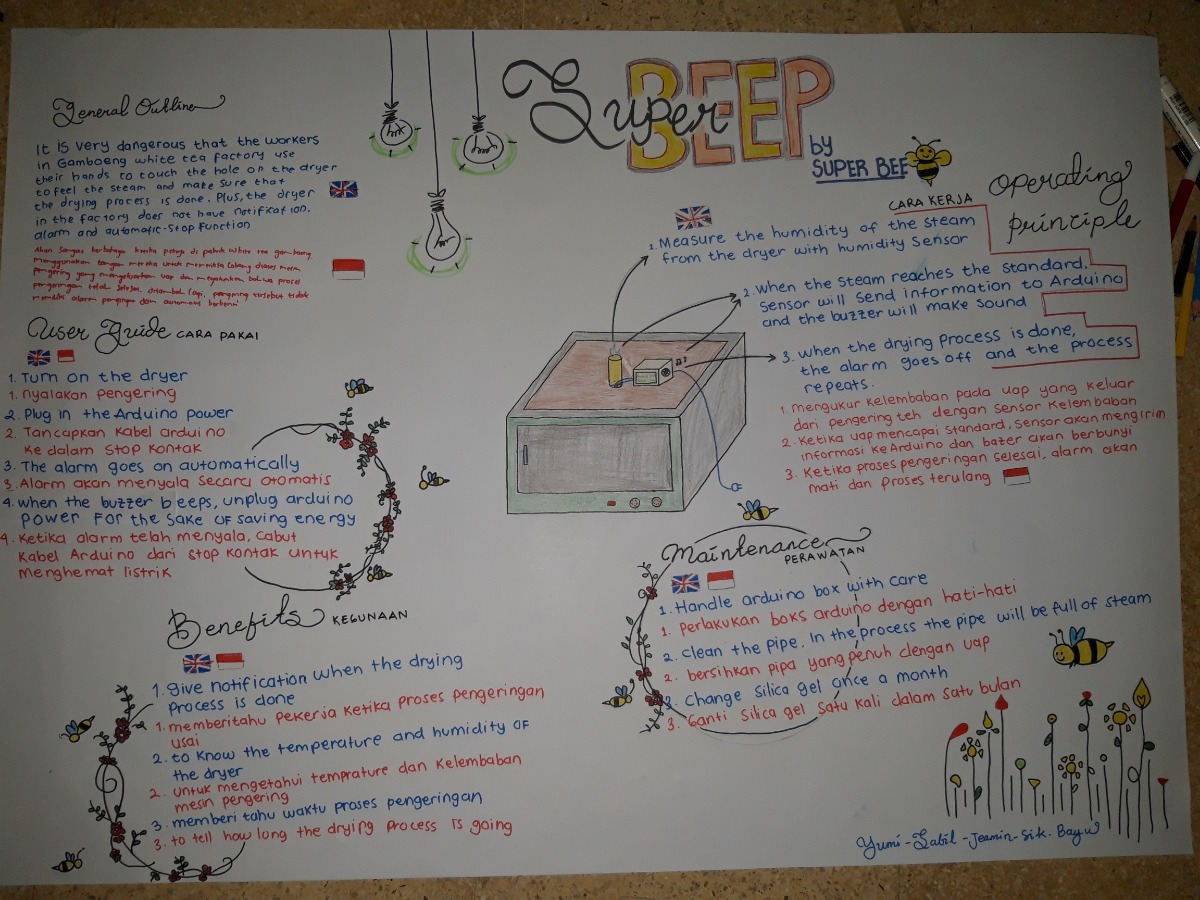

We also made ppt, ppt needs to be continued.

superbee

2019-08-07 21:48:18

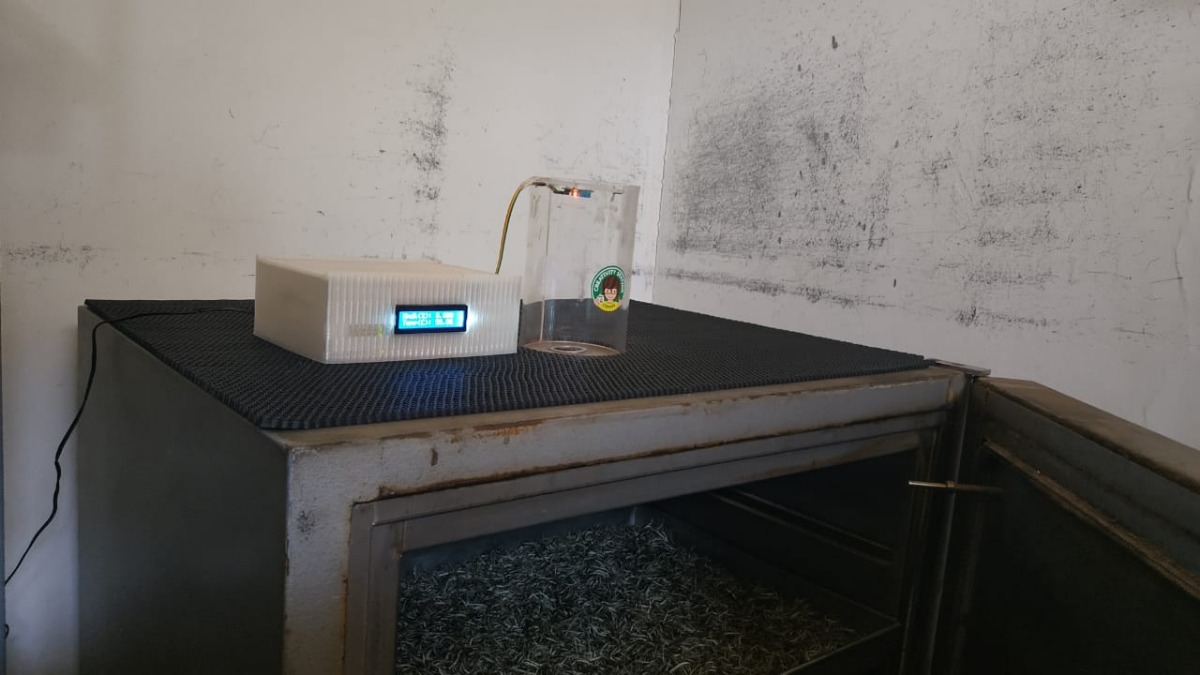

Making a Product

Slide Show
